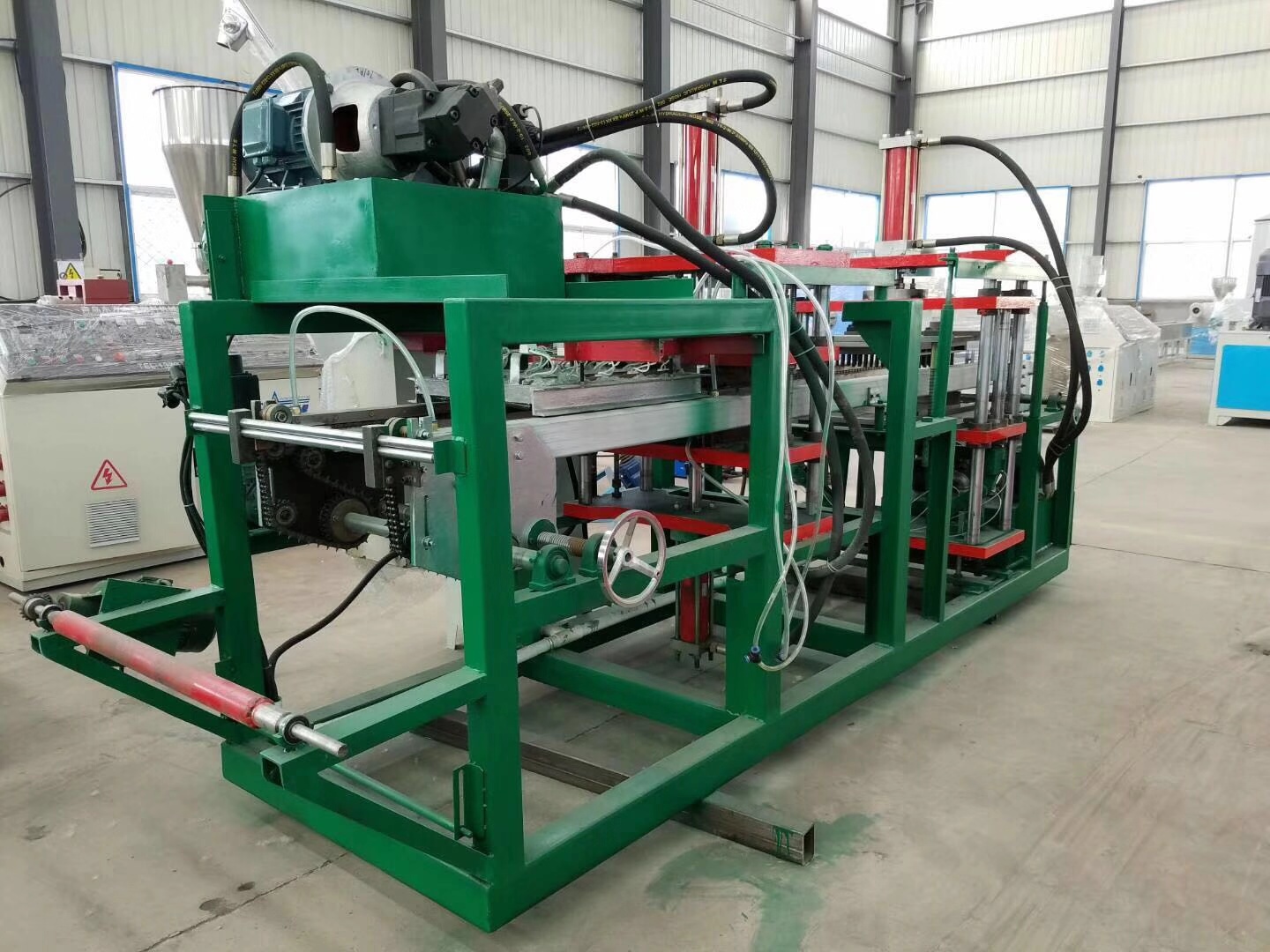

The blister machine (also called the thermoforming machine) is a machine that sucks the heat-plasticized PVC, PE, PP, PET, HIPS and other thermoplastic plastic coils into various shapes of high-grade packaging boxes, frames and other products. Using the vacuum suction force generated by the vacuum pump, the heated and softened PVC, PET and other thermoplastic plastic sheets are blister-molded into various shapes of vacuum covers, blister trays, blisters, etc.
Machine introduction
main application vacuum forming machine,Blister machine,plastic Blister machine Shandong Top Leader Plastic Packing CO., LTD , https://www.sdzlplastic.com
Features
Easy Assembly
The JH-33Z features a modular 33-zone design that makes installation quick and simple—only four screws are needed to mount the unit. This makes it ideal for both new installations and upgrades.
Pinpoint Detection Zones
With 33 distinct detection zones, the system ensures complete coverage from head to toe on the left, center, and right sides of the body. This precision helps identify the exact location of any metal object.
Traffic Lights
A built-in traffic light system at the entrance of the archway alerts users when the detector is ready for the next passenger. This improves efficiency and user experience in high-traffic areas.
Audible and Visual Alarms
When a metal object is detected, the system triggers both an audible alarm and bright LED visual indicators. The pinpoint lights on the exit gatepost help staff locate the object quickly and efficiently.
Touchpad Controls
The control panel includes a touchpad with multi-level security codes, allowing authorized personnel to adjust settings and manage access. This adds an extra layer of security and customization.
Self-Test Function
The system performs a self-test while in operation, and any issues or malfunctions are immediately displayed on the LCD screen. No batteries are required for memory retention, ensuring reliable performance.
Specifications
1. Operating Temperature: -20°C to +70°C; Humidity: Up to 95% non-condensing
2. Power Supply: Fully automatic 100–240VAC, 50/60Hz, 5W; No rewiring or adjustments needed
3. Protection Rating: IP55 compliant, meeting IEC standards for weatherproofing and foreign object resistance
4. Traffic Counter: Counts the number of passengers, alarms, and calculates alarm percentage
5. Synchronization: Dual-channel and DSP technology allow multiple JH-33Z units to operate simultaneously in close proximity
6. Alarm System: Adjustable audible tone and volume, along with bright LED visual alarms
7. Target Pinpoint Lights: 33 distinct zones displayed via two independent LED columns on the exit side of the gate
Dimensions
Overall Dimensions (cm): 224 (Height) x 90 (Width) x 58 (Depth)
Alley Size (cm): 224 (Height) x 76 (Width) x 58 (Depth)
Net Weight: 68kg
Shipping Dimensions (cm): 227 x 73 x 22 (Side Panel), 80 x 59 x 28 (Control Box)
Shipping Weight: 90kg
This advanced door frame metal detector is perfect for airports, schools, government buildings, and other high-security environments where accurate and efficient metal detection is essential.
The principle of the blister forming machine: blister forming is also called thermoforming. This forming process mainly uses the vacuum suction generated by the vacuum pump to soften the heated PVC, PET, PETG, APTT, PP, PE, PS and other thermoplastic plastic sheets The material is vacuum-formed into various shapes of vacuum hoods through molds, or attached to the surface of various shapes of products. According to the thickness of the sheet, the blister is divided into thin blister and thick blister.
The main structure of the machine is composed of feeding, drawing, upper and lower electric heating furnace, lower gate, multi-functional adjustable size, lower mold plate, upper mold, upper gate, knife gate, slicing, placing film, and vacuum equipment. ;
The common products of thick plastic blister include: household appliance inner shell, luggage, display rack accessories, decoration, car interior, bumper, mudguard, beauty equipment, light box shell, toy car shell, industrial panel, advertising light box, Blister LOGO, bathroom products, refrigerator liner, etc.
Plastic packaging industry (blister packaging, plastics, batteries, toys, gifts, hardware, home appliances, electronics, stationery, decoration)
Food packaging industry (fast food boxes, fruit trays, biscuit boxes)
Pharmaceutical industry (pill packaging, tablet packaging)
Industrial cooling tower cooling water deflector, etc.
Three-dimensional relief patterns for decoration, plastic ceilings, wall panels, automotive materials, sanitary equipment and other manufacturing industries.
Suitable for the production of various color sheets: polyethylene PS, polyvinyl chloride PVC, organic glass, ABS, polymethyl methacrylate; flocking sheets; environmentally friendly sheets APET, PET, PP, etc.; photodegradable materials; biodegradable Materials and other plastic products.
Model NO.: JH-33Z
Alarm: Audible and Visual Alarm, Automatic Stop
Trademark: ANHUSHEN
Specification: CE & ISO9001
Origin: China
HS Code: 8543709100
Door Frame Metal Detector JH-33Z
